Multifunctional Probe Microscopy Platform AFM100 series

ユーザが追加した画像

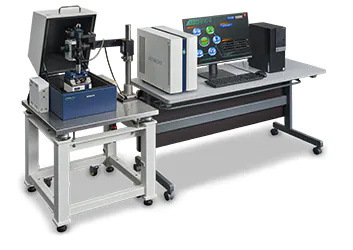

The AFM100 Series is Hitachi’s next generation probe microscopy platform.  The AFM100 Plus and AFM100 systems that make up this series have been designed to expand the capabilities and performance of atomic force microscopy, while providing an easy-to-use platform suitable for users of all experience levels.
Experience the finest reliability and innovation with the AFM100 Series.

Features

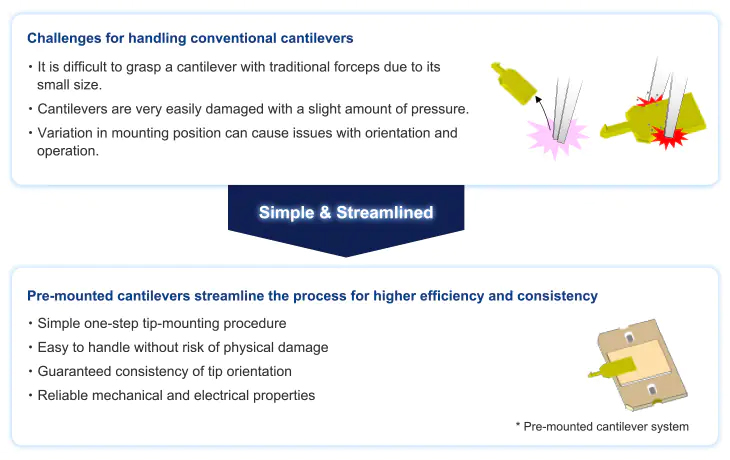

Pre-mounted cantilevers make replacement EASY(option)

Pre-mounted cantilevers make replacement EASY(option)

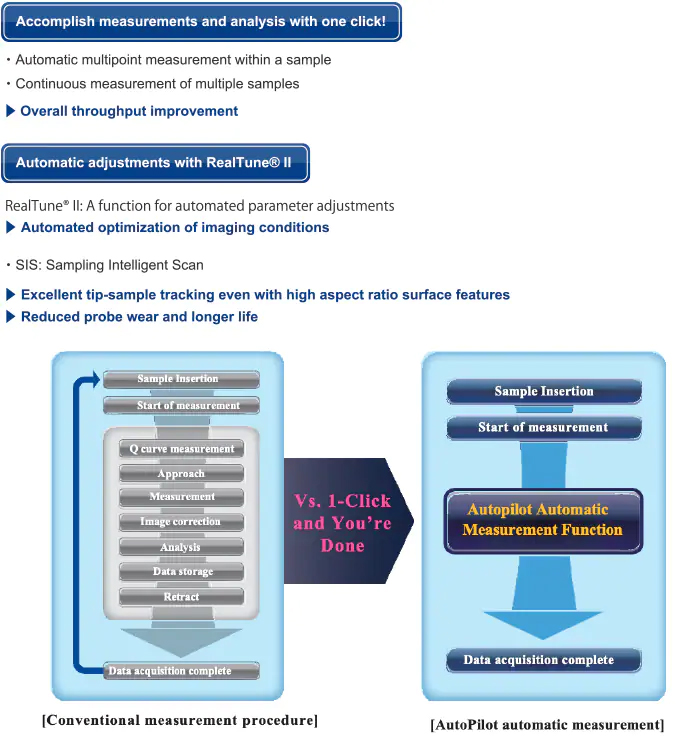

Automated measurement & analysis with one-click autopilot function

Automated measurement & analysis with one-click autopilot function

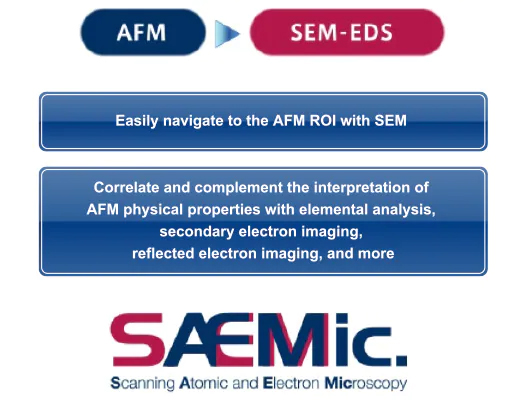

Correlative SEM-EDS Analysis with our AFM Marking Function

Analyze the same region of interest (ROI) with SEM, EDS, and AFM: More Information = Better Results!

・Automated AFM Marking Features with Navigation Software.

・Automated AFM Marking Features with Navigation Software.

※SÆMic. is a generic term for SEM-AFM correlative analysis recommended by Hitachi High-Tech.

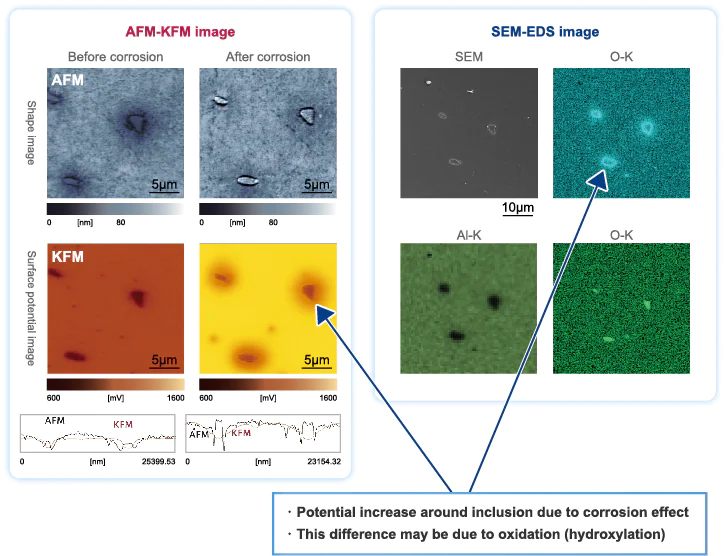

[Evaluating AFM-KFM-SEM-EDS of Aluminum Alloy before and after Corrosion]

[Evaluating AFM-KFM-SEM-EDS of Aluminum Alloy before and after Corrosion]

Specifications

AFM100 Plus / AFM100 System Specifications
AFM100 PlusAFM100
Detection System/Light SourceOptical lever/SLD (Super luminescent diode)
Lever holderPremount holder*, multi-holder*
Basic SpecificationsRMS noise level: ≦0.03 nm, in-plane drift: ≦0.03 nm/sec
Sample sizeMax. 35 mmφ, thickness 10 mm, (max. 50 mm sq., thickness 20 mm)*
Scanner (Scan range)*(XY:20 μm/Z:1.5 μm, XY:100 μm/Z:15 μm, XY:150 μm/Z:5 μm)*(Included with a 5-year warranty)
Light microscopeMicroscope with zoom function (Field of view XY:1.8 x 1.38 to 0.26 x 0.2 mm)*
Simple optical microscope (Field of view XY:1.6 x 1.2 mm)*		Simple optical microscope
(field of view XY:1.6 × 1.2 mm)
Basic functionsAFM, DFM, PM, FFM, SIS-shapes/properties, Q-value controlAFM, DFM, PM, FFM, SIS-shapes
Vibration isolation and noise isolation mechanismPassive vibration isolation air table and sound-proof coverStandard tabletop
Sample transfer mechanismManual Stage XY:±2.5 mm, Impact Stage Set (Conductive Type)*
Measurement environmentAtmosphere, in liquid *, heated * (room temperature to 250 °C), heated in liquid * (room temperature to 60 °C)
Other functionsSelf-check function, software download service, AFM marking*
Power Supply SpecificationsAC 100 V ± 10 V, 15 A, 1 line, D inoculated grounded receptacle
  • ※ The asterisk (*) in the table indicates feature is optional.
  • ※For detailed specifications, please refer to the product specification sheet.
